Top Mount Sand Filter With Swimming Pool Water Pump Combo Swimming Pool Filter Pump

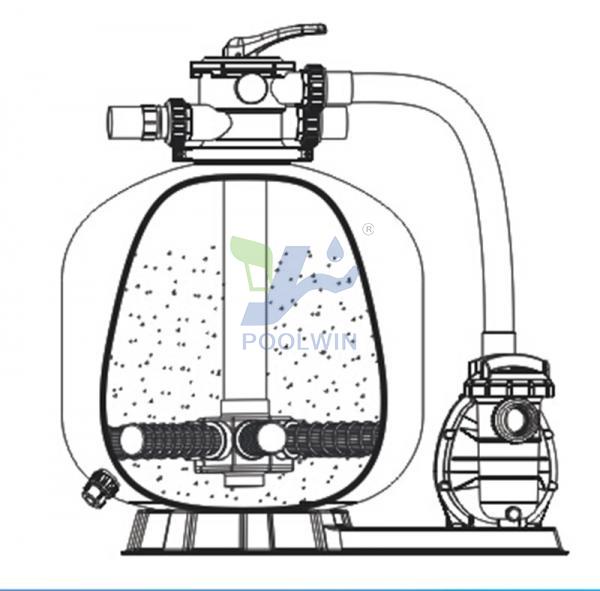

Designed for easy set-up domestic pool, "AQS" series filtration combo offers the right solution for home user who is looking for user-friendly and excellent filtration performance. "AQS" series filtration combo includes top mount fiberglass filter tank, 6-way multiport valve, swimming pool pumps attached with base.
PRODUCT DETAIL
| Model | Max Flow Rate | Filter | Pump | Valve Connections | Sand(kg) |
| YSF400 | 6 | Y400 | 0.5HP | 1.5inch(50mm) | 40 |
| YSF450 | 8.10 | Y450 | 0.75HP | 1.5inch(50mm) | 45 |
| YSF500 | 11.1 | Y500 | 1.0HP | 1.5inch(50mm) | 85 |
| YSF650 | 15.6 | Y650 | 1.5HP | 1.5inch(50mm) | 150 |
Functions:
| Valve Position | Function |
| Filter | Normal Filtration |
| Backwash | Cleaning filter by reversing the flow |
| Rinse | Used after backwash to flush dirt from valve |
| Waste | By-passes filter, used for vacuuming to waste or lowering water level |
| Recirculation | By-passes filter for circulating water to fool |
| Closed | Shuts off all flow to filter or pool |
Features:
1) Max operating pressure 36psi/2.5bar
2) Max temperature of 43°C (109F)
3) Universal standard of union connection provided
4) Suggested size of media: 0.5-1.2mm sand
5) Made of fiberglass and polyester.
6) Top diffuser ensures even distribution fo water over the top of the sand bed.
7) Large pressure sand/water drain for rapid winterizing or servicing.
8) UV resistance surface allows the filter to work under direct sunlight.
9) Easy to use water drain plug and multi-port valve lets you select any of the valve/filter operation wiht a simple lever-action.

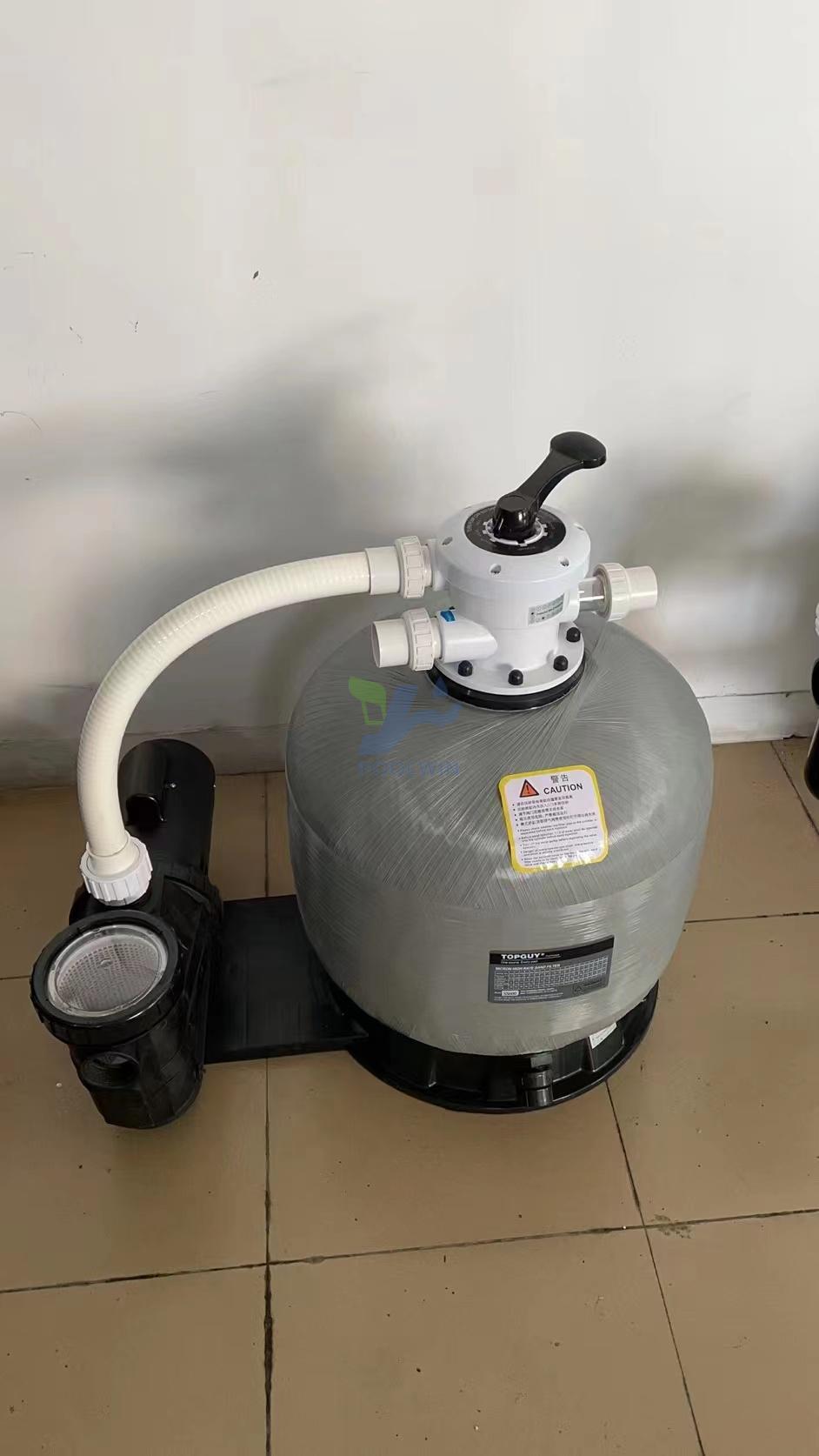

Pictures of top mount sand filter with pump combo:
INSTALLATION
Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.This will avoid damages to the laterals
by the force of the sand when pouring into the filter.
